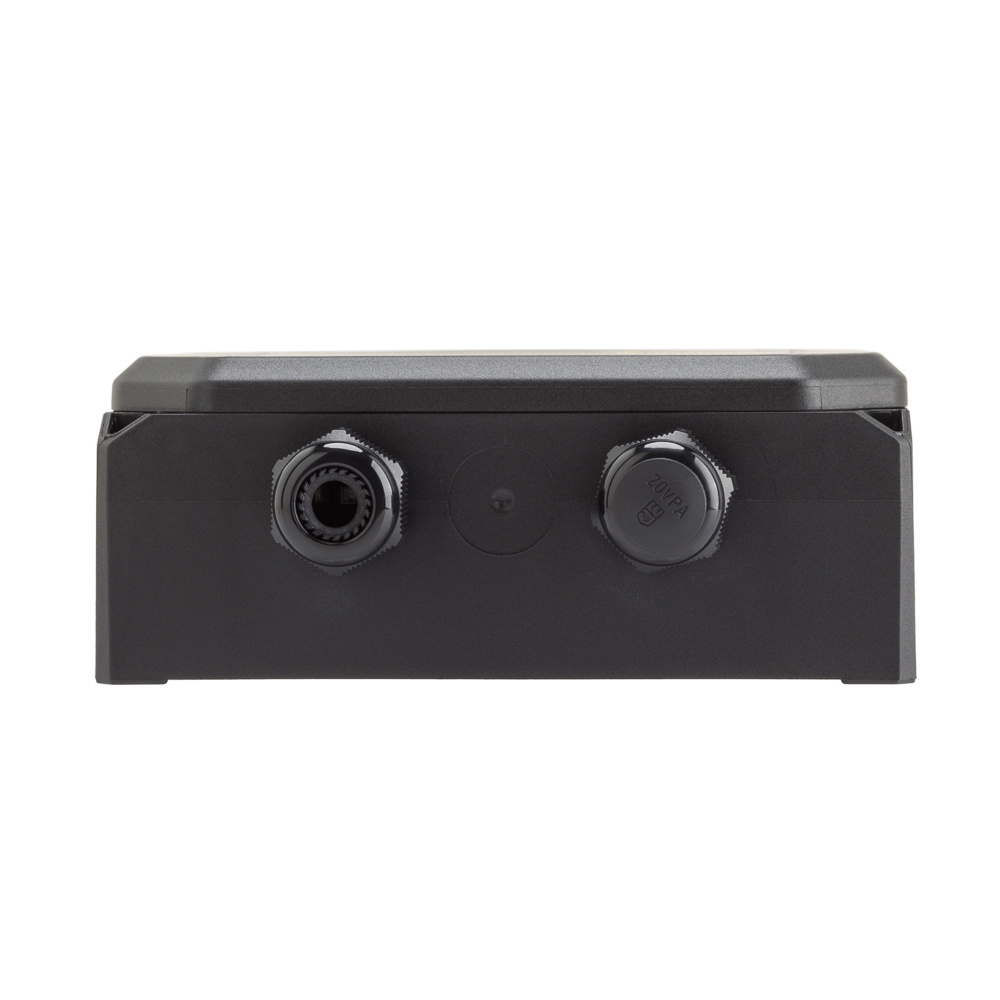

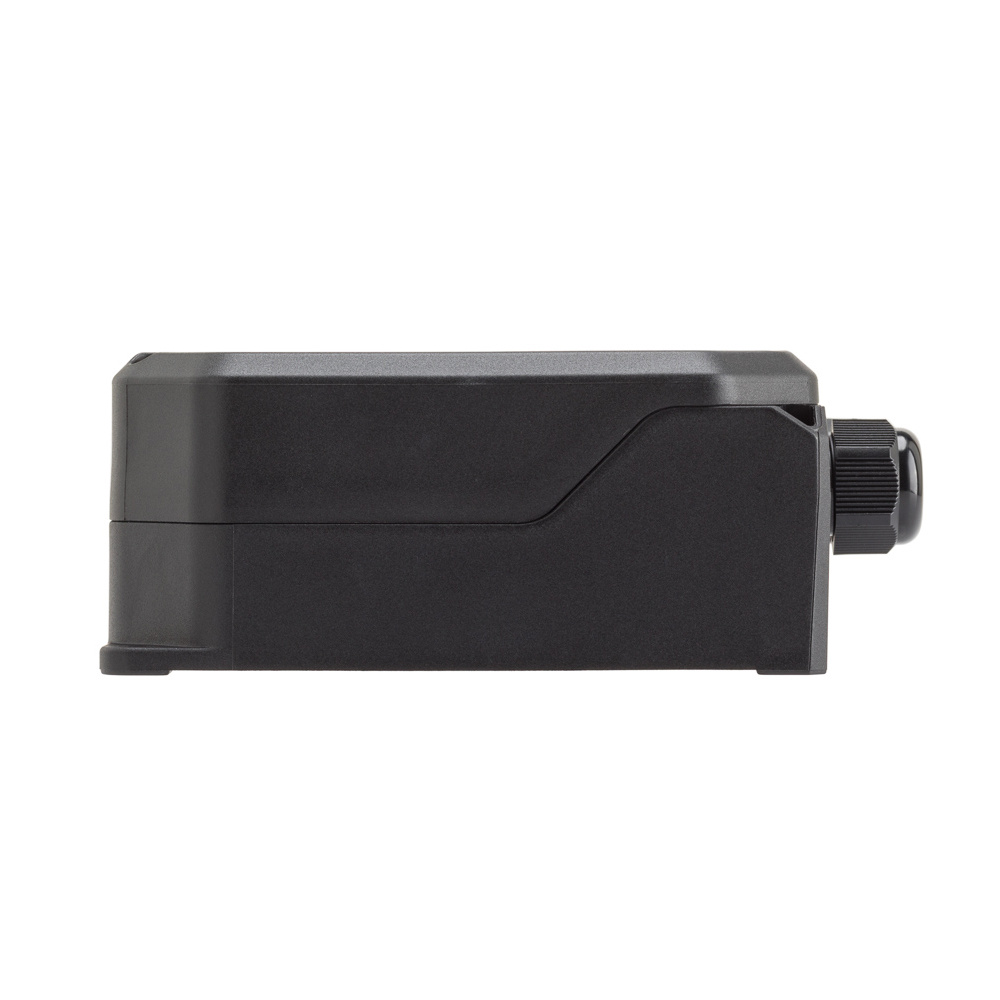

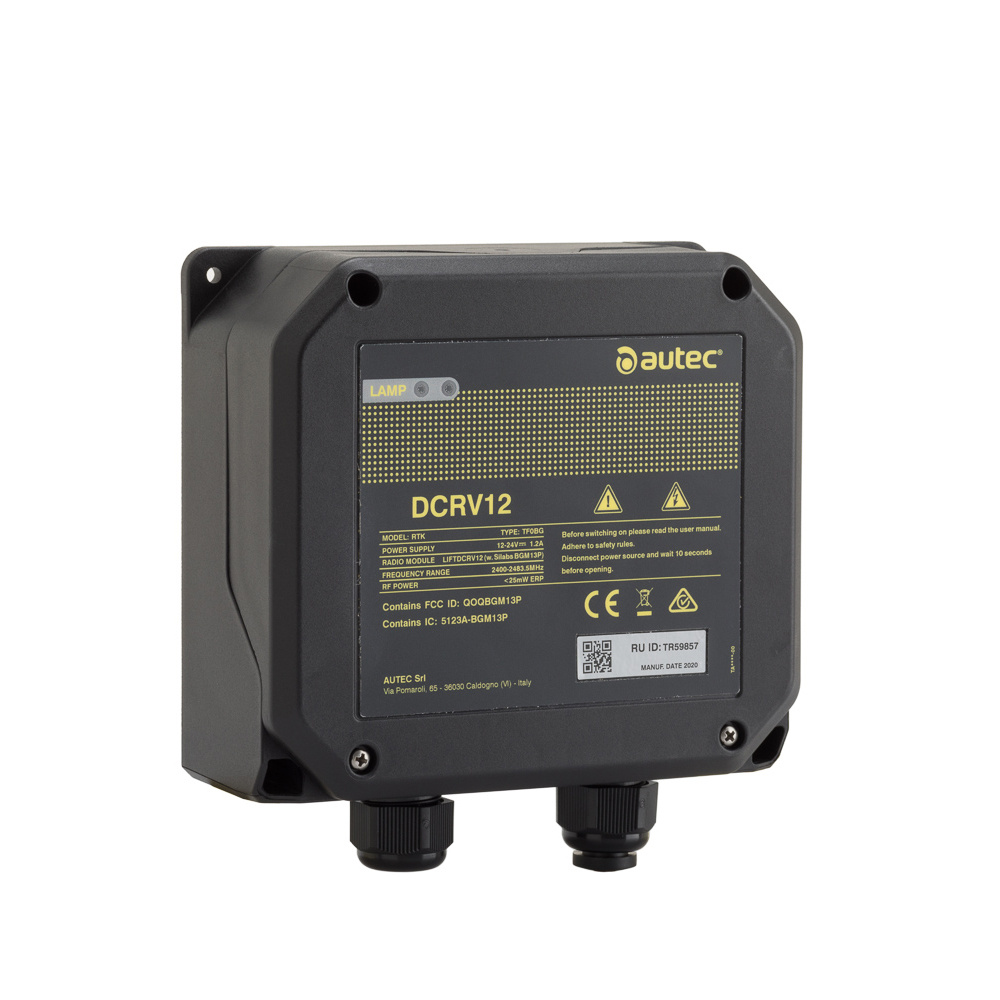

DCRV12

Lift

The highly compact base station has 12-24 VDC inputs, 12 outputs (4 relays, 8 MOSFET), and an available expansion board that can provide additional outputs or other features.

TECHNICAL DATA SHEET CONTACT US

Performance of the General Safe Stop function (GSS)	SIL 2 / PL d; cat. 3
Power supply	12-24 VDC
Antenna	internal external optional
Max number of Optional Boards	1
Max number of outputs	12
Commands rated current	5 A (30 VDC)
Rated current of STOP / Safety outputs	5 A (30 VDC)
Protection degree	IP65 (Enclosure type 4)
Operating and storage temperature	operating: (-20 °C) ÷ (+70 °C) / (-4 °F) ÷ (+158 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Connecting interfaces	cable gland plug 16 and 24 pin
Dimensions	150x134.5x60 mm (5.9x5.29x2.36 in)
Weight	1 kg (2.2 lb)

DCRV12

TECHNICAL DATA SHEET

Applications

Portable station
