TJE

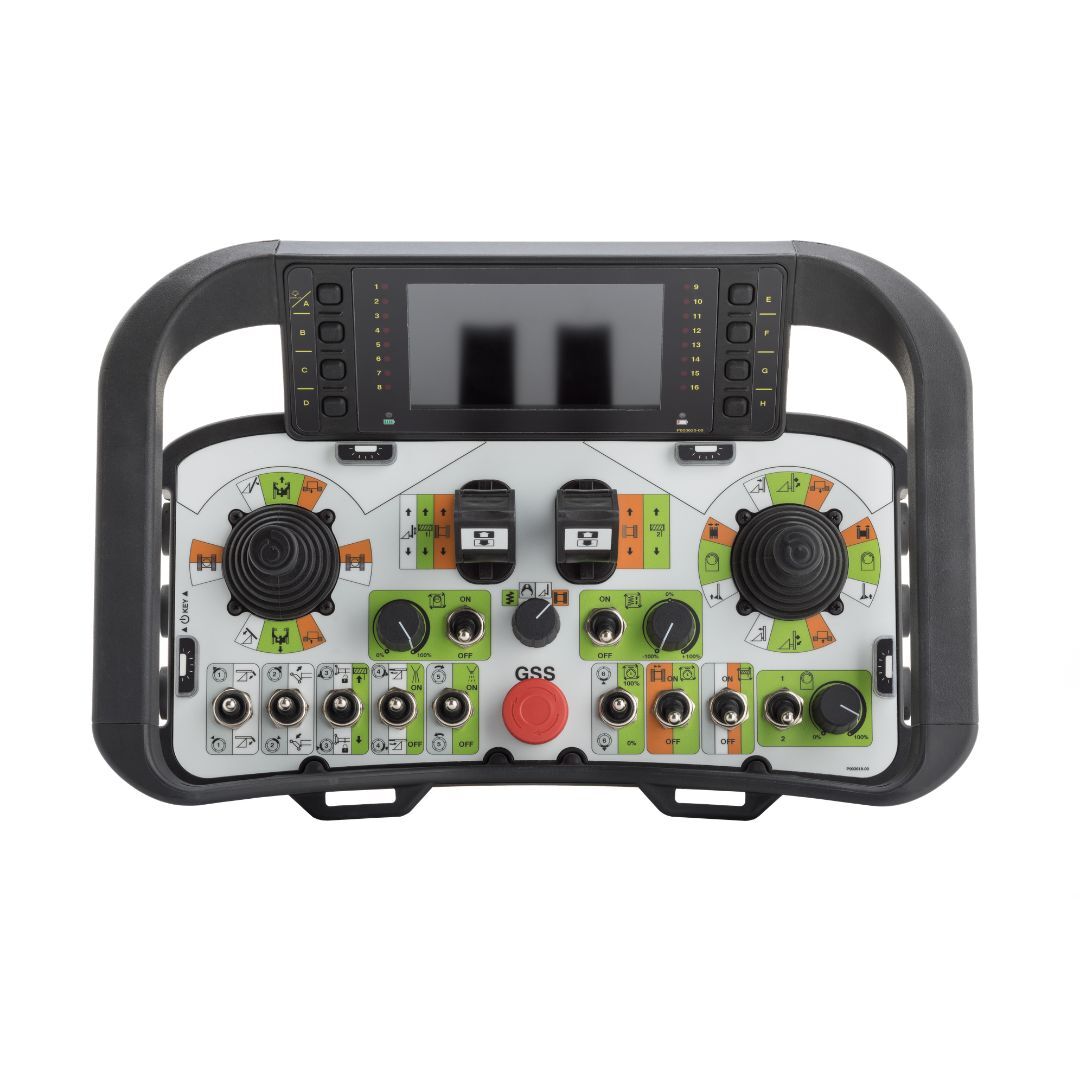

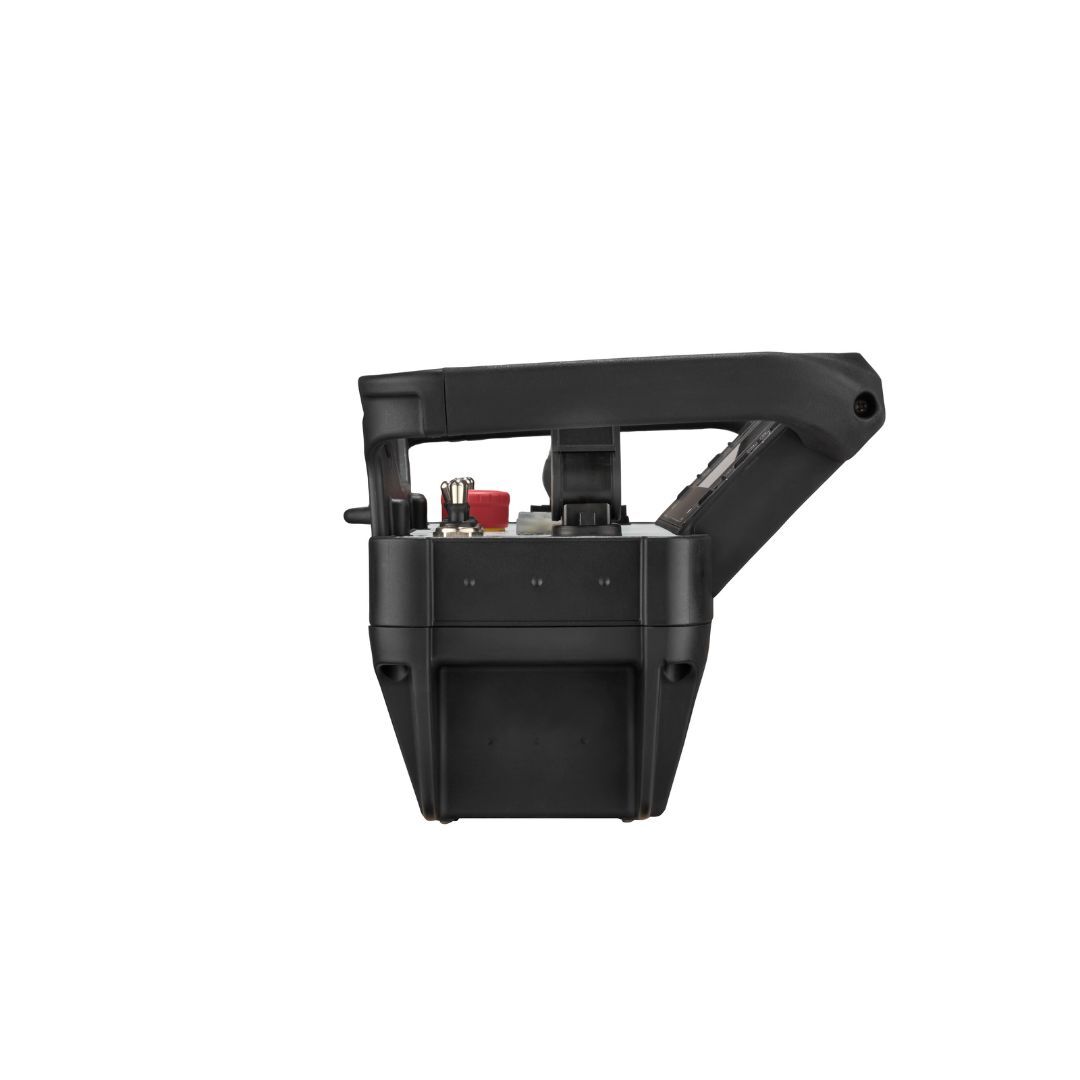

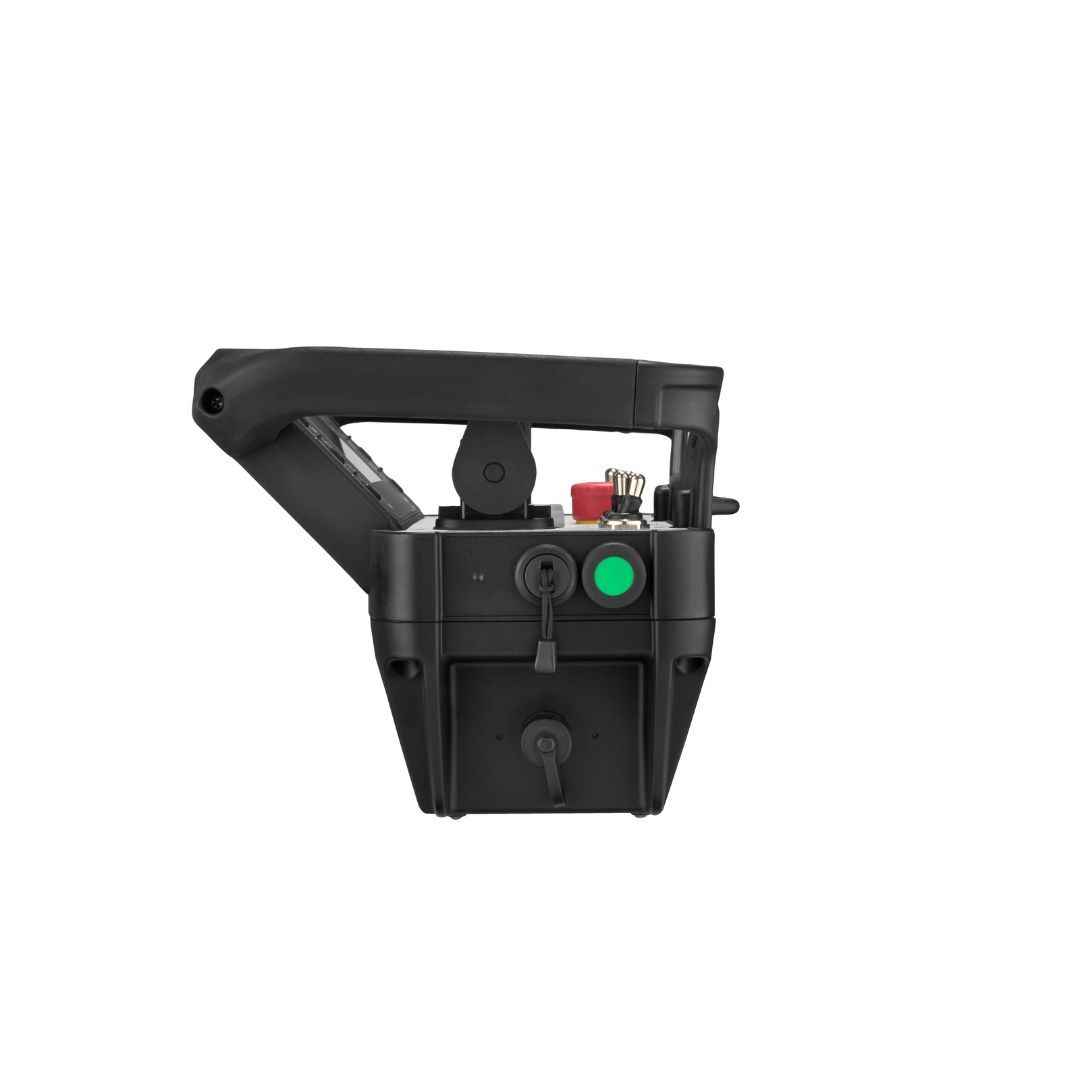

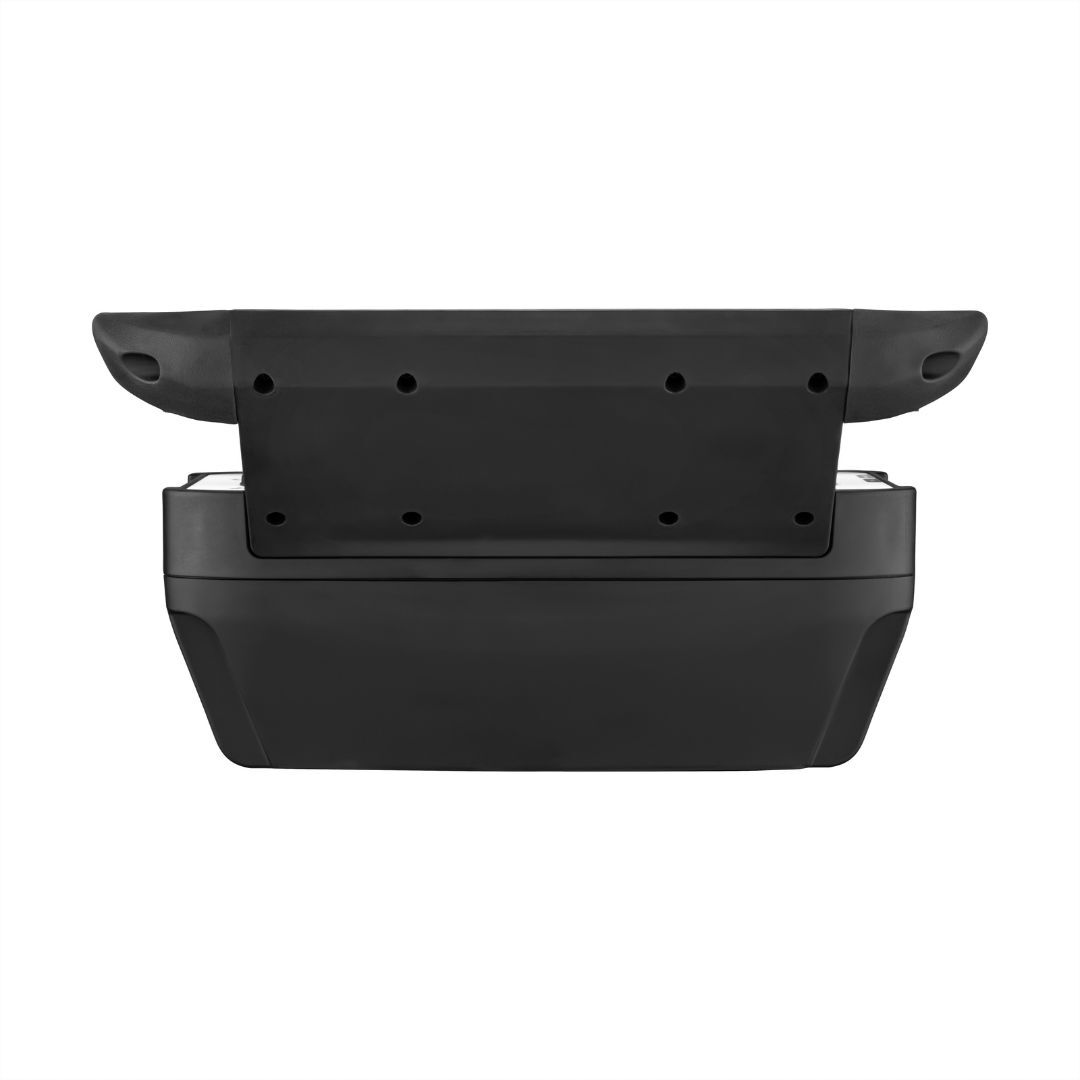

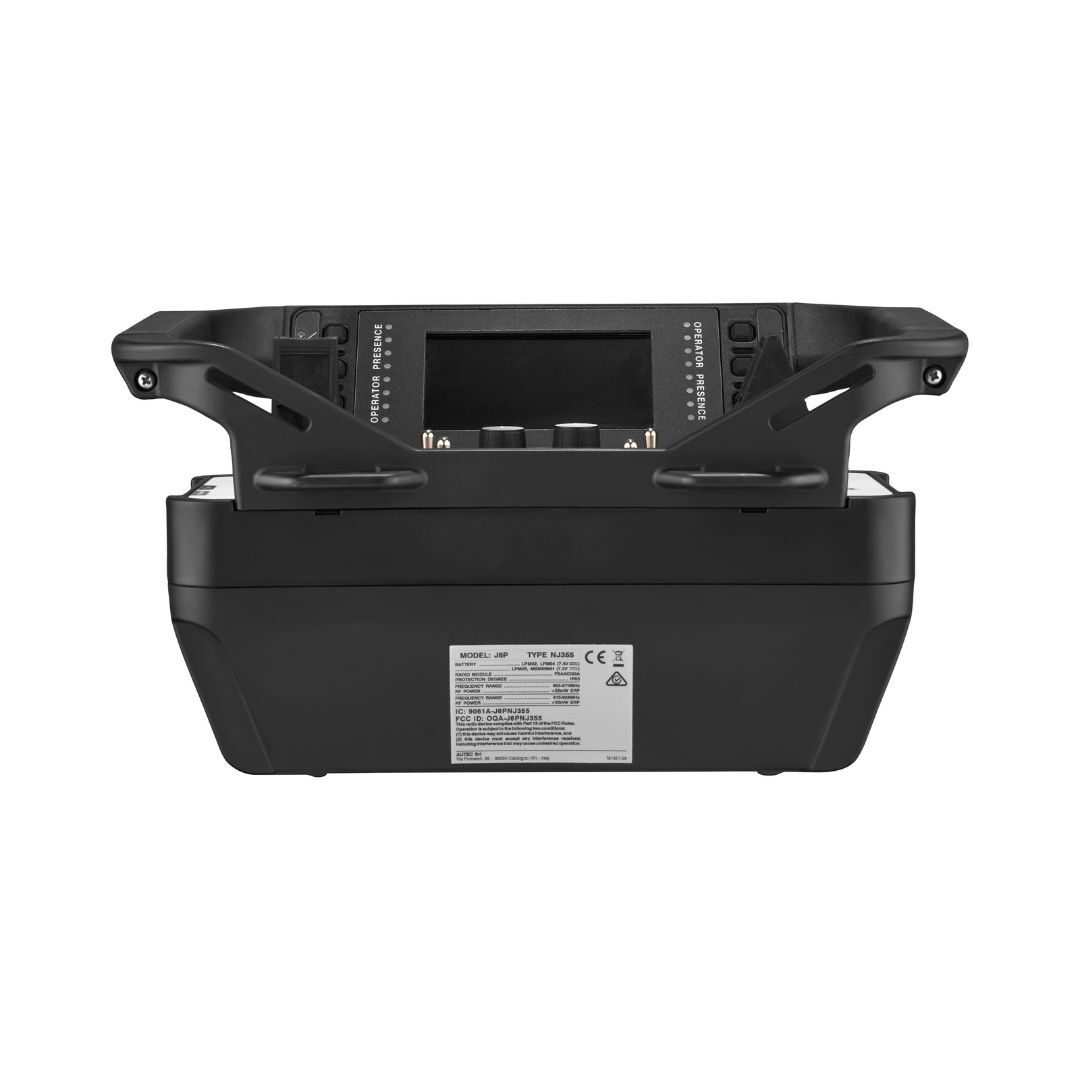

The TJE Powerbar model is a radio remote control that offers a wide range of features in a large-format panel. The Dynamic+T series features the Triband technology, which provides three frequency bands in a single module, which can be used in accordance with local regulations. The pairing procedures between the transmitter/receiver units and the frequency switching can be performed via radio. The TJE supports up to 4 multi-axis joysticks or 9 single-axis joysticks and is typically used for advanced mobile equipment and material handling applications, such as construction machinery, agricultural vehicles, and lifting systems. Its ergonomic shape and robust structure prevent accidental activations and interferences, while the optimized layout ensures easy access to the top and side actuators.
TECHNICAL DATA SHEET
| Power supply |
7.2 V
|
| Radio frequency |
870 MHz
915 MHz 2.4 GHz
|
| Performance level of stop (GSS / EMS) |
up to PL e, SIL 3 (EN ISO 13849-1)
|
| Performance level of the automatic stop (ATS) |
up to PL e, SIL 3 (EN ISO 13849-1)
|
| Performance level of Unintended Movements From Standstill (UMFS) |
up to PL d, SIL 2 (EN ISO 13849-1)
|
| Typical working range |
100 m (330 ft)
|
|
Max number of functions
|
up to 4 multi-axis joysticks, 20 actuators, 12 side pushbuttons; up to 9 single-axis joysticks, 20 actuators, 12 side pushbuttons |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) |
without display: 60 hours with display: ≥ 8 hours |
| Protection degree | IP65 |
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F) storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) |
|
Dimensions
|
370x248x183 mm (14.5x9.7x7.2 in) |
| Weight | 4,3 kg (9.48 lb) |
| Included accessories | shoulder or waist belt, battery charger, 2 extractable Li-Ion batteries |
