T10B / T10C

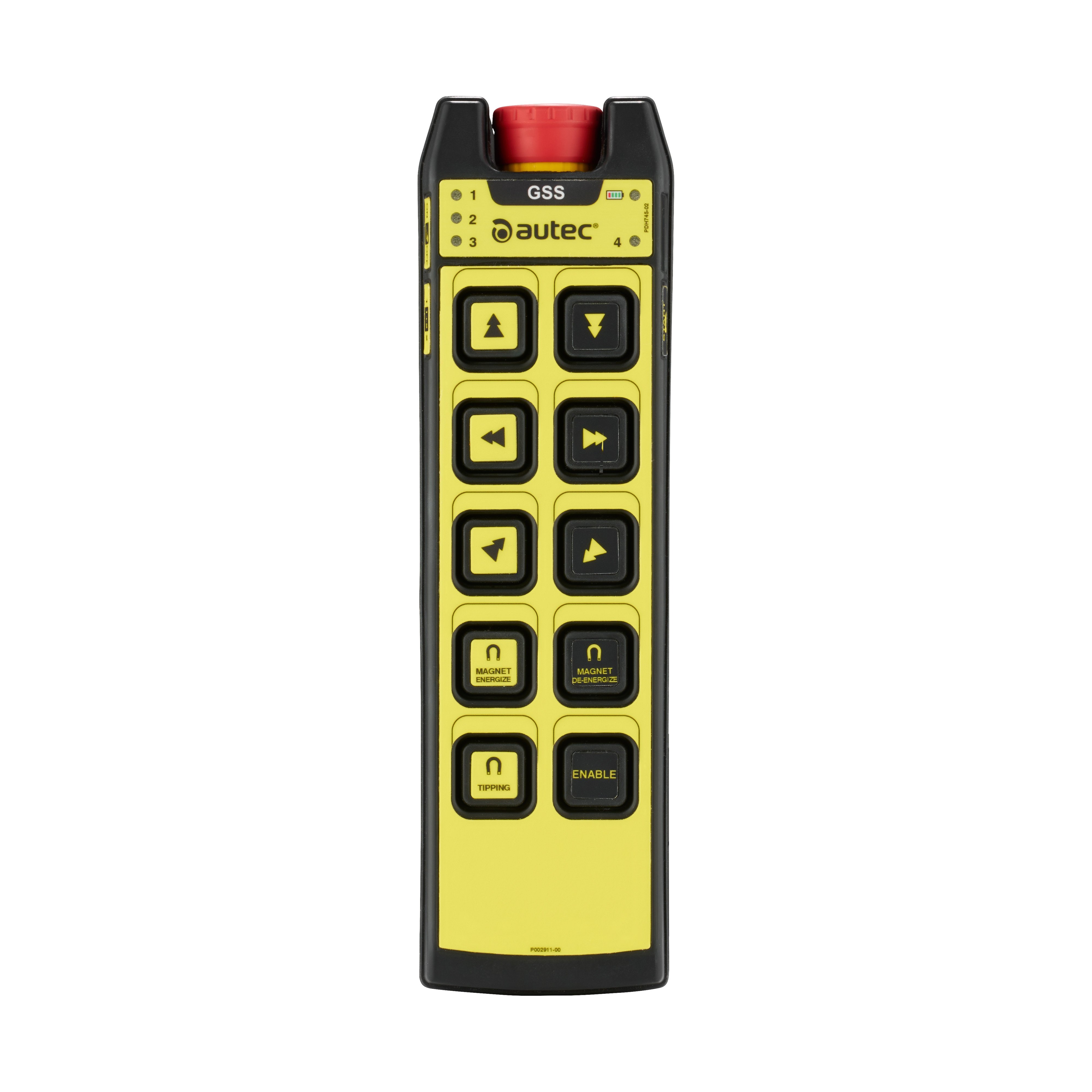

LiftThe LIFT T10 Pushbutton is a light and sturdy handheld transmitter with 10 dual-pression buttons that introduces 3 side buttons for further customizable options. The increased number of buttons allows a clear programming setup and further reduce accidental activation errors.
All models have 4 x LEDs (Data Feedback) which can display machine information.
MY LIFT AUTEC free smartphone app simplifies system configurations

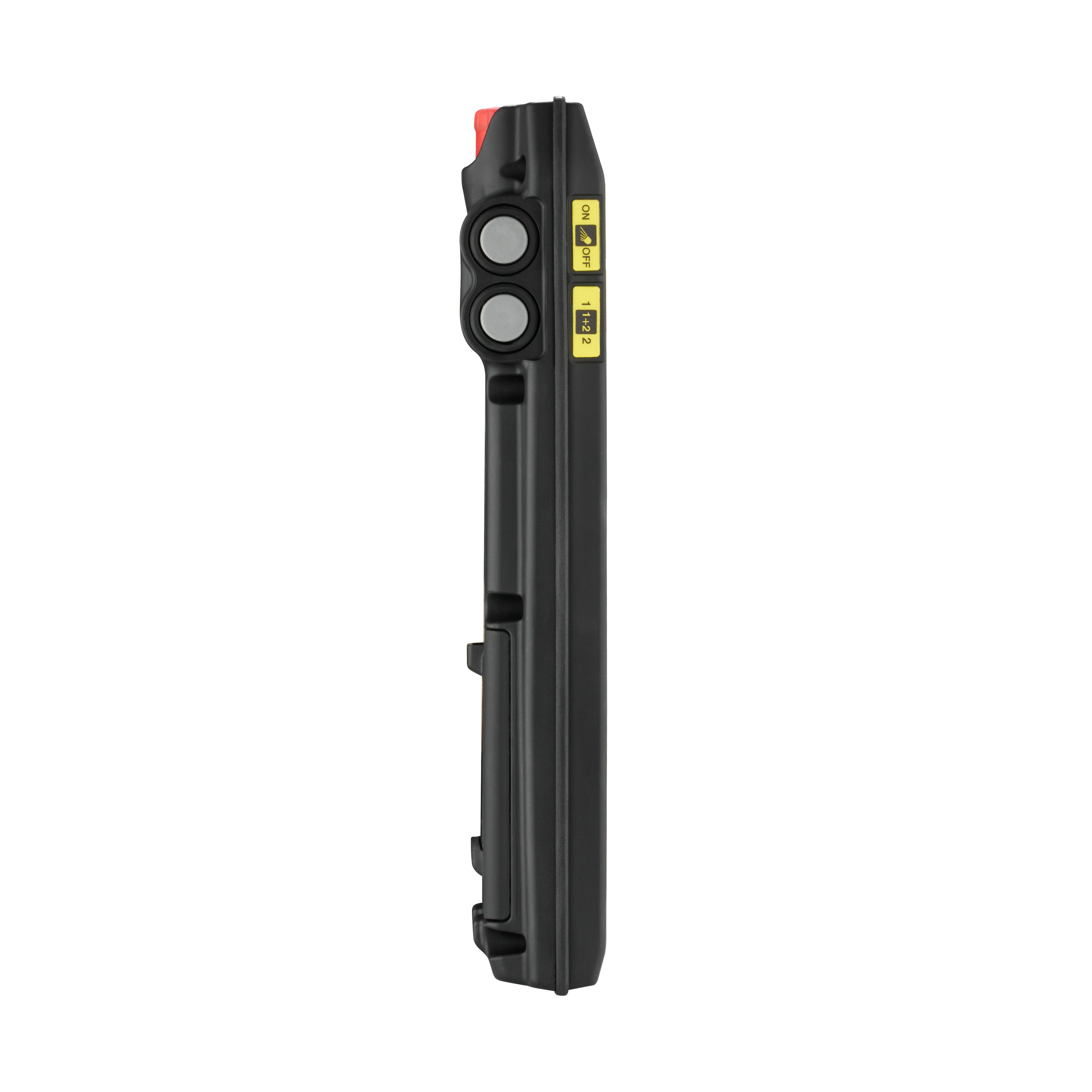

3 additional programmable
side buttons
T-Key to authorize the use of the handhelds; alternatively a dedicated PIN can be programmed
Customizable labeling: whole panel or pushbuttons symbols kit
Mail applications:
Overhead Creanes
Gantry, luffing, and flag cranes
Exceptional transport and roll-off trucks










Options

App "MY LIFT AUTEC"
The 'MY LIFT AUTEC' app allows for quick and easy configuration of installation parameters, for LIFT series remote controls.

UL 508 certification
Certification that allows the use of the remote control in the territories of the United States and Canada. This authorization is granted exclusively when the device is used in combination with the ACRH11 base station.
TECHNICAL DATA SHEET
Power supply | Li-Ion battery LPM00 (T10B) n° 3 alkaline batteries AAA 1.5 V (T10C) |
Frequency band | 2400 – 2483.5 MHz (40 channels) |
GSS/EMS/ATS performance (EN ISO 13849-1 and EN IEC 62745:2017) |
up to PL d, SIL 2 |
Typical working range | 75 m (246 ft) |
Average usage time with fully charged battery (continuous use at 20°C / 68°F) | 38 h (T10B) 70 h with batteries 1.2 Ah (T10C) 88 h with batteries 1.5 Ah (T10C) |
Antenna | internal |
Protection degree | IP65 (Enclosure type 4) |
Operating and storage temperature | operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) |
Dimensions |
66.6x230.8x37.4 mm (2.62x9.08x1.47 in) |
Weight |
~0.35 kg (~ 0.77 lb) |
