HT4

Lift

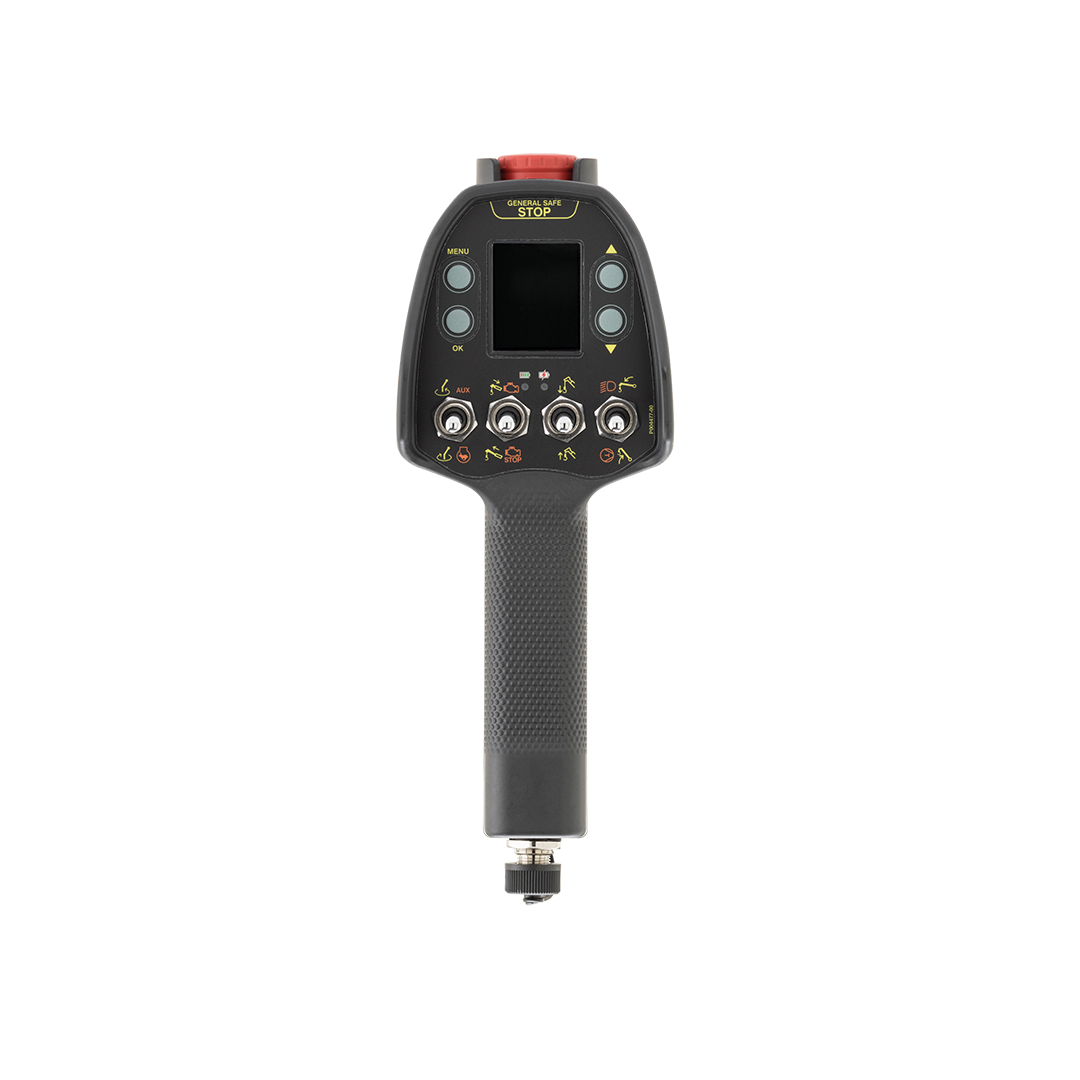

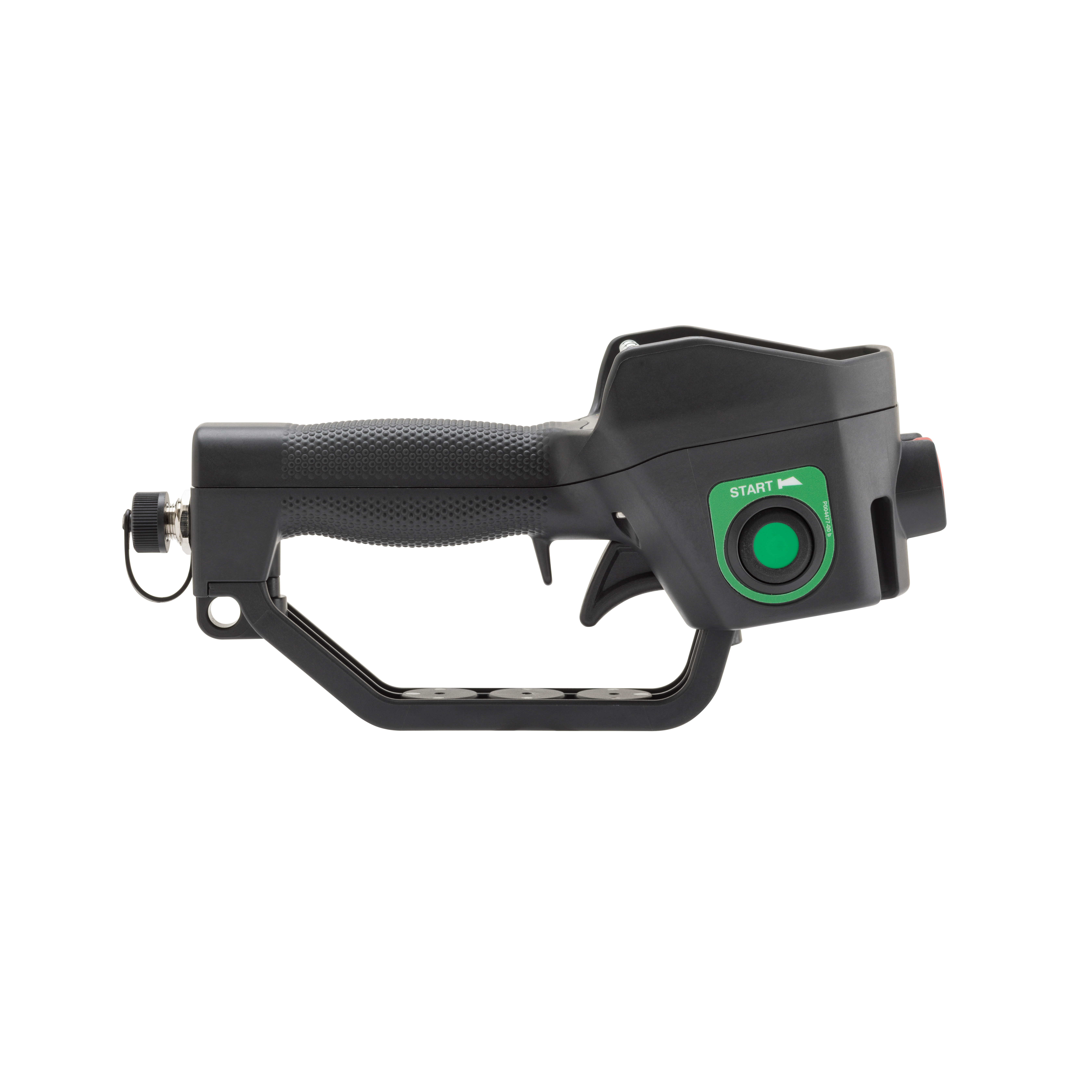

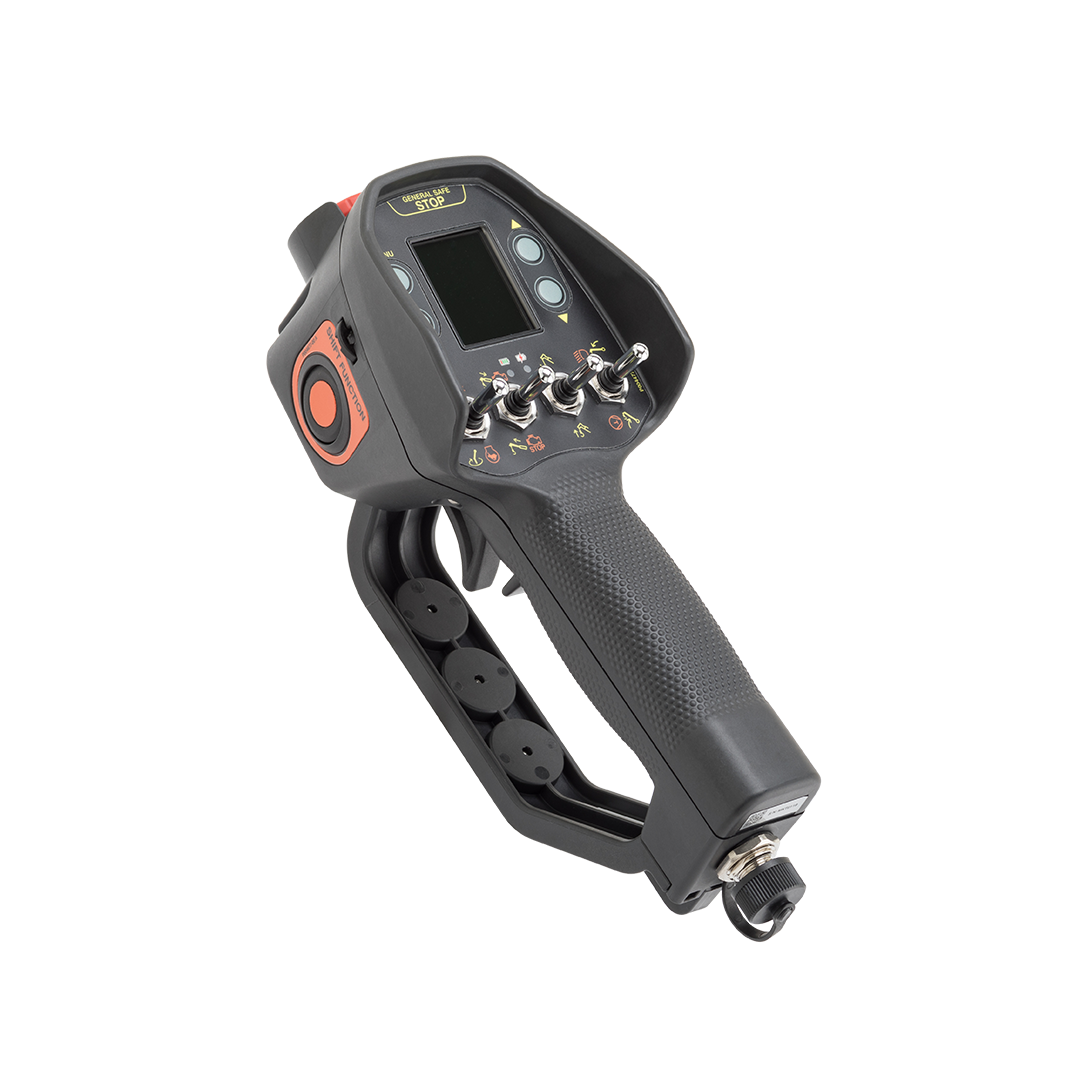

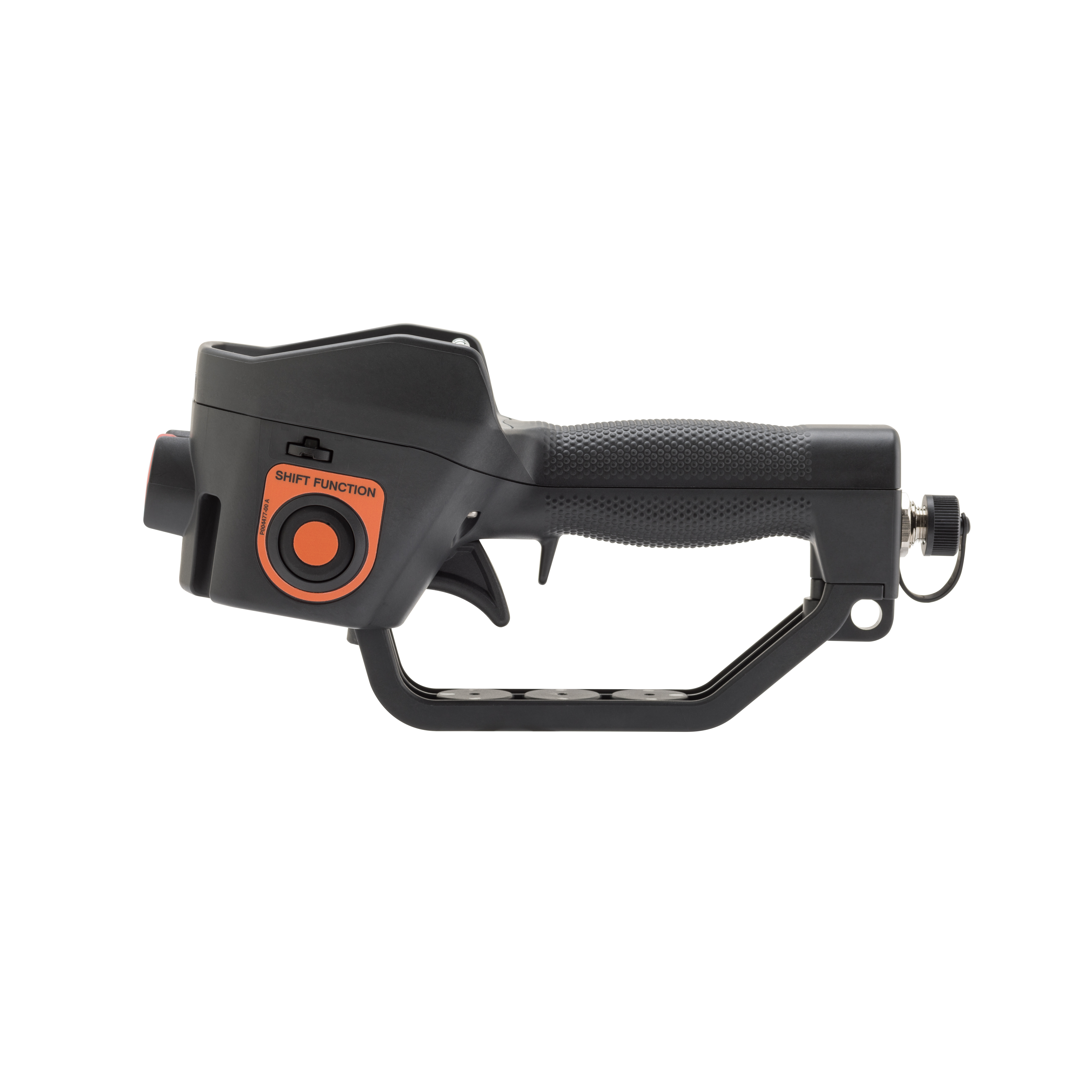

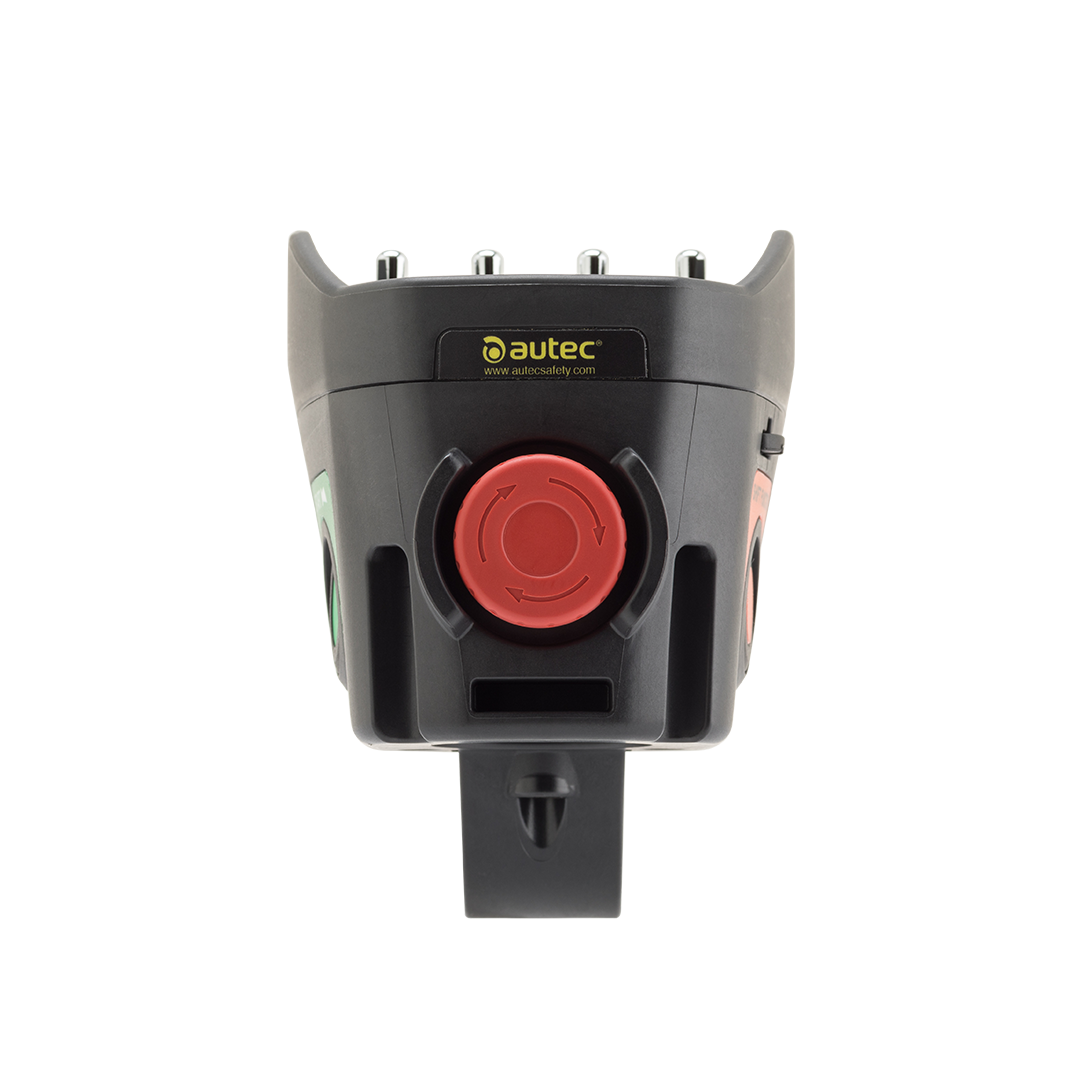

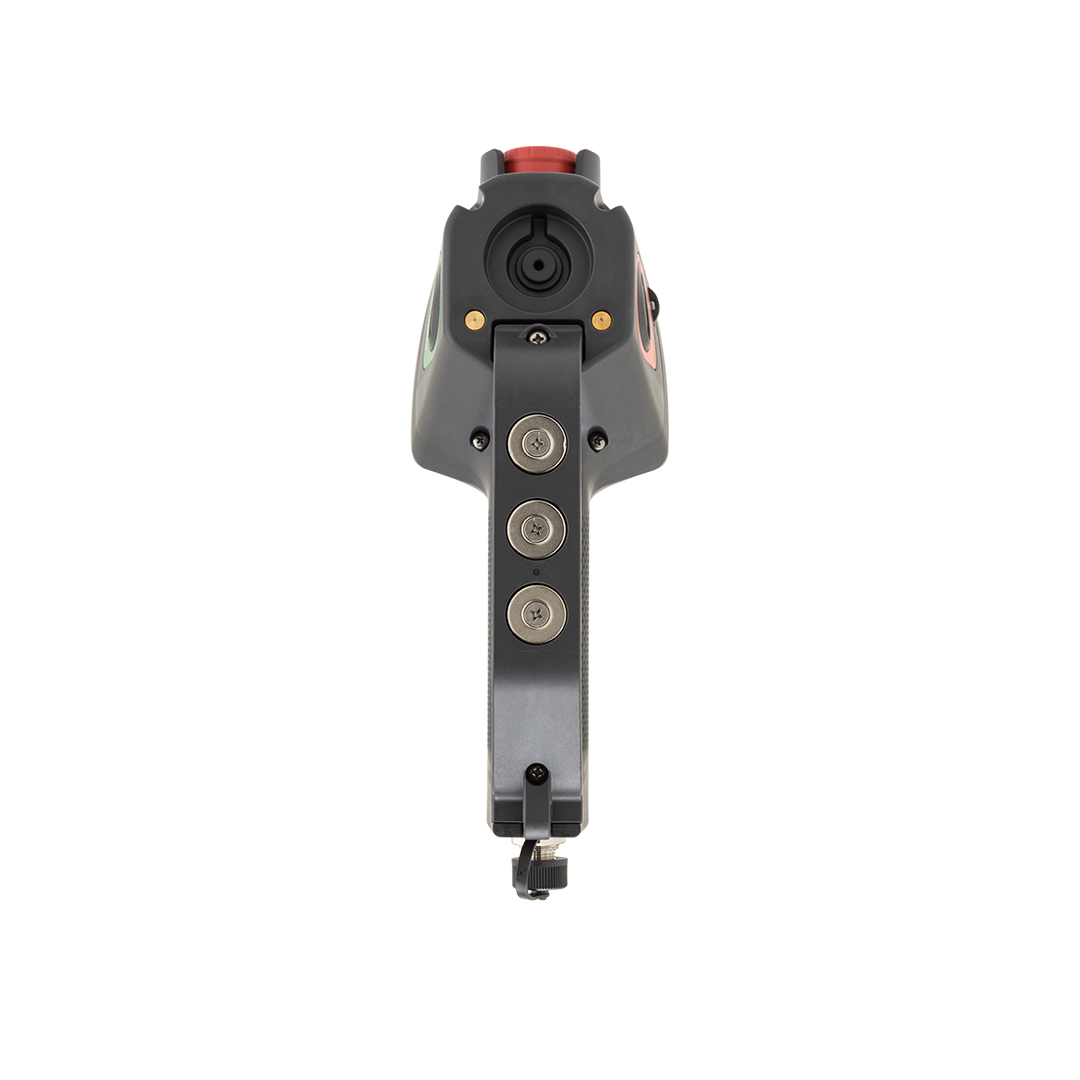

HT4 is an AUTEC’s solution for the remote control of hydraulic service truck cranes and truck‑mounted lifting equipment. Compact in size and designed with an intuitive and safe control layout, it is engineered for one‑handed operation, combining advanced ergonomics with high operational reliability.

The clear arrangement of the controls, the proportional trigger, and the fully customizable 1.8” graphic display make HT4 ideal for professional applications where control, reliability, and safety are essential requirements.

Main applications:

Hydraulic service truck cranes
Truck‑mounted lifting equipment

TECHNICAL DATA SHEET CONTACT US
Download the brochure
HT4-1
HT4-2
HT4-3
HT4-4
HT4-5
HT4-6

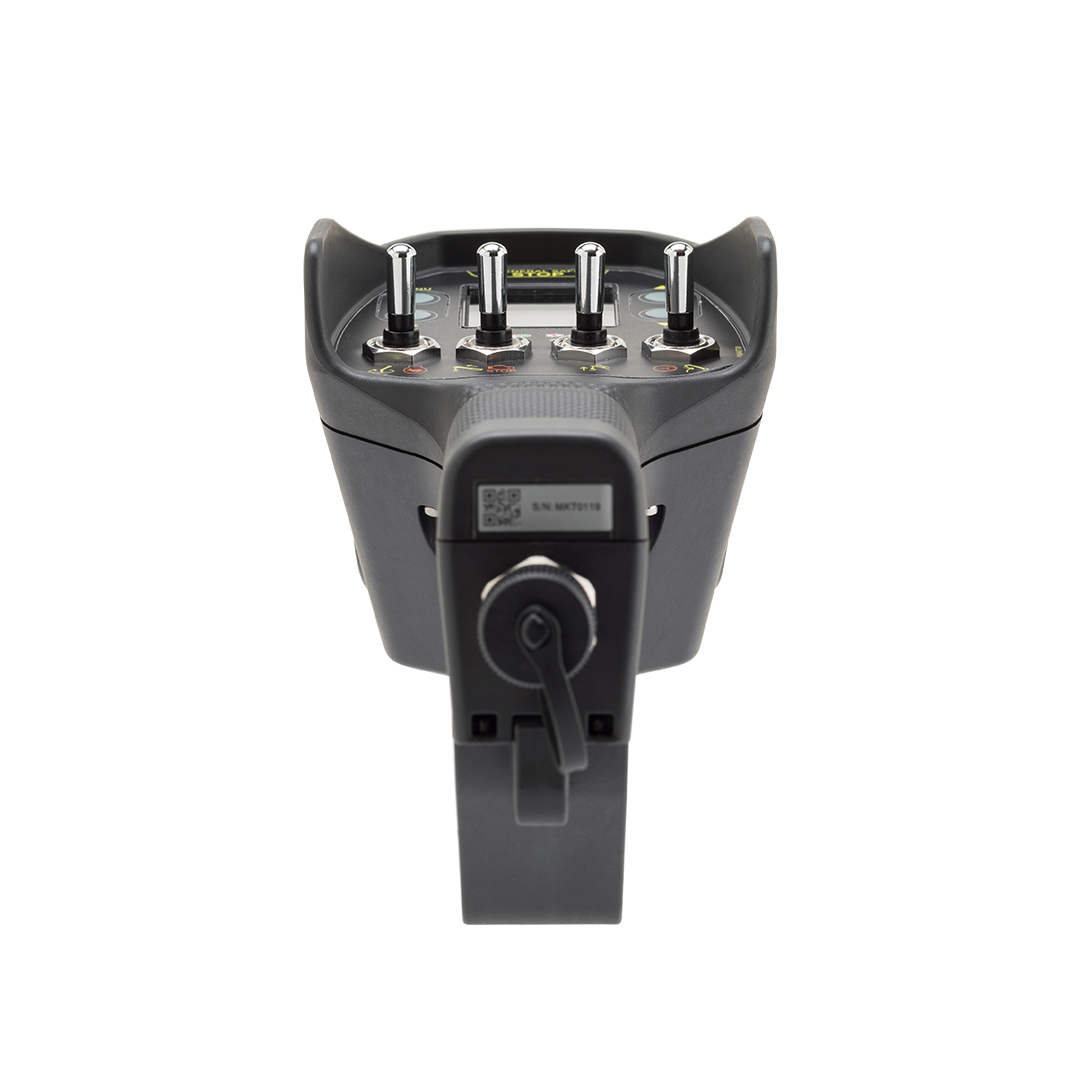

HT4-7

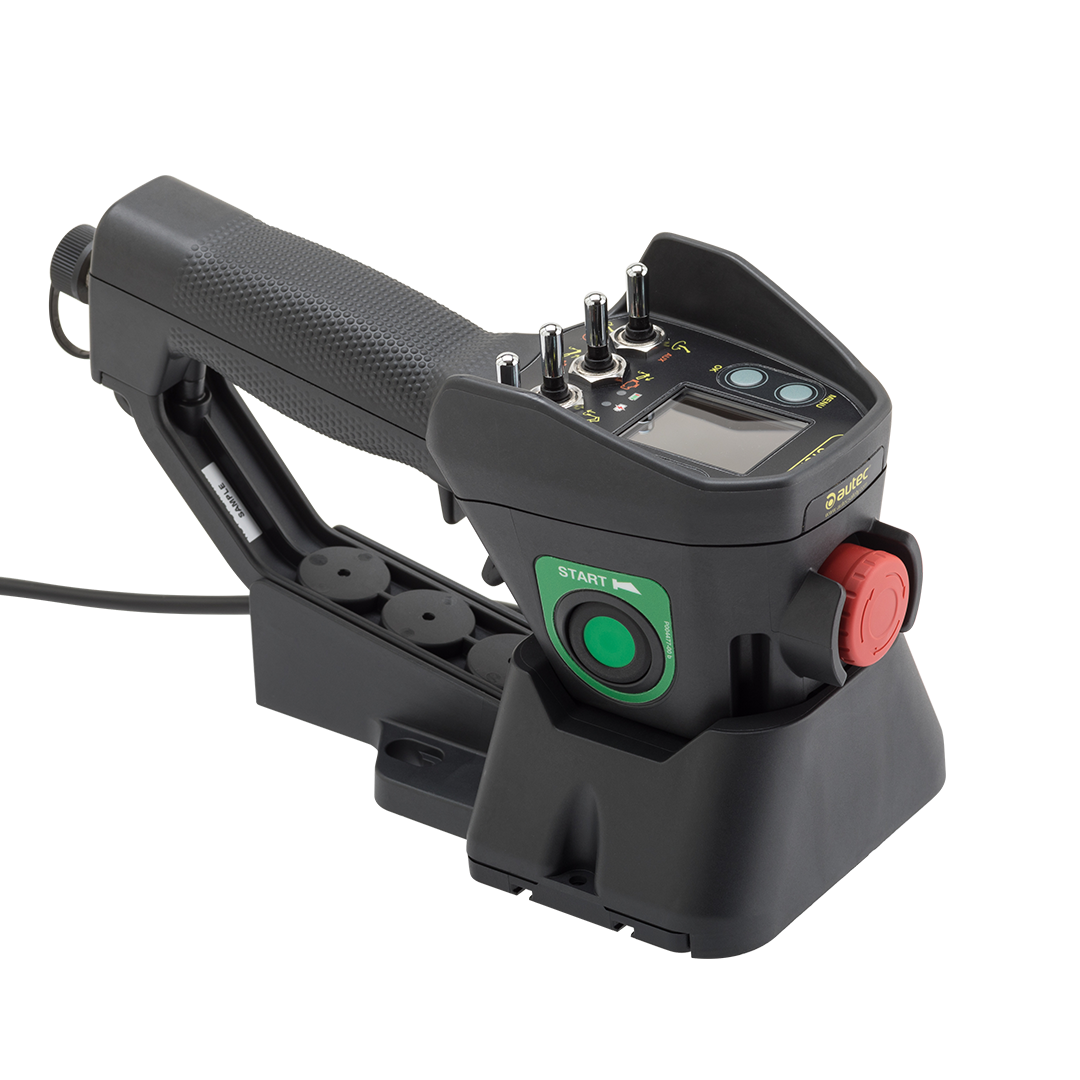

HT4-8
HT4-1
HT4-2
HT4-3
HT4-4
HT4-5
HT4-6
HT4-7
HT4-8

Options

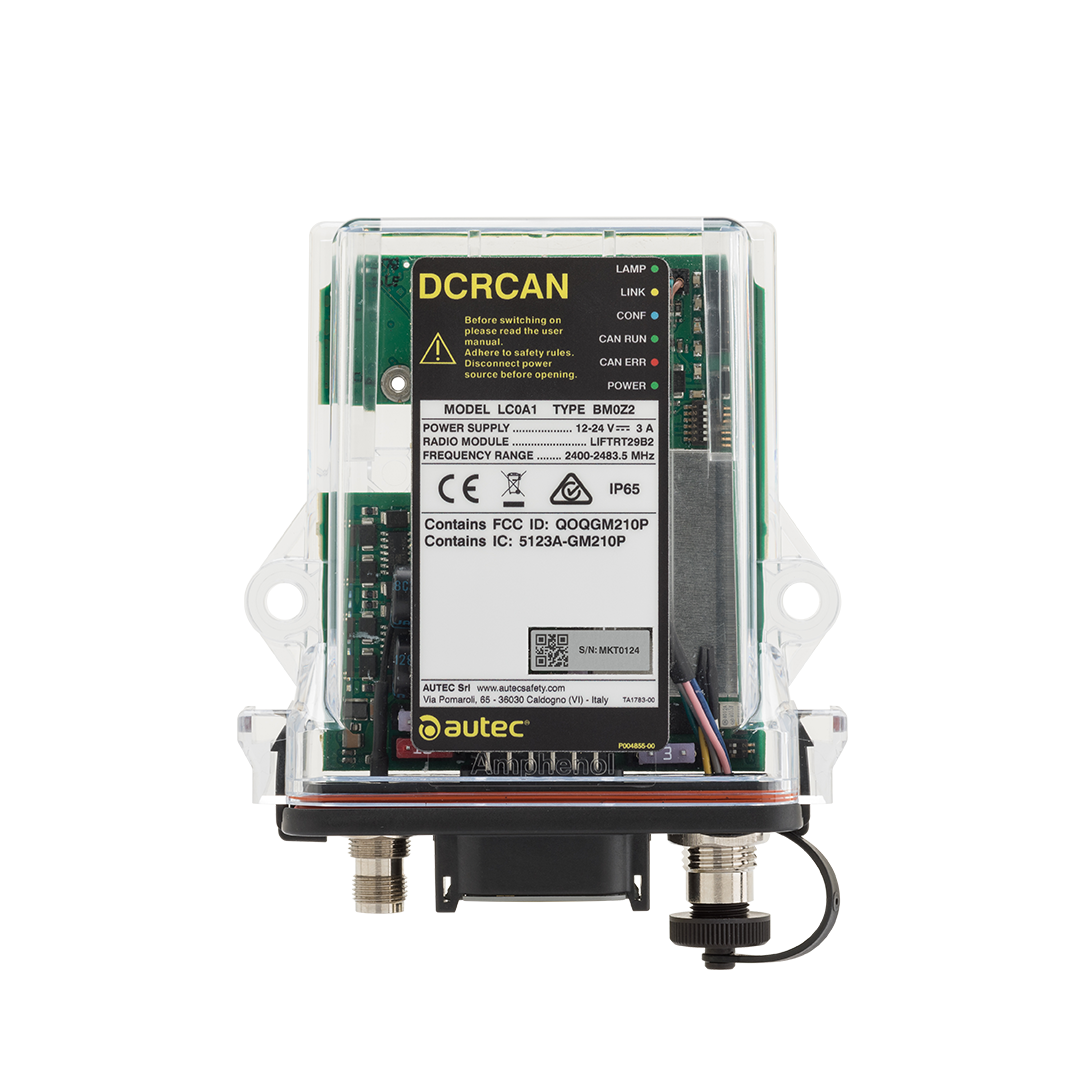

Connection device
Connection device

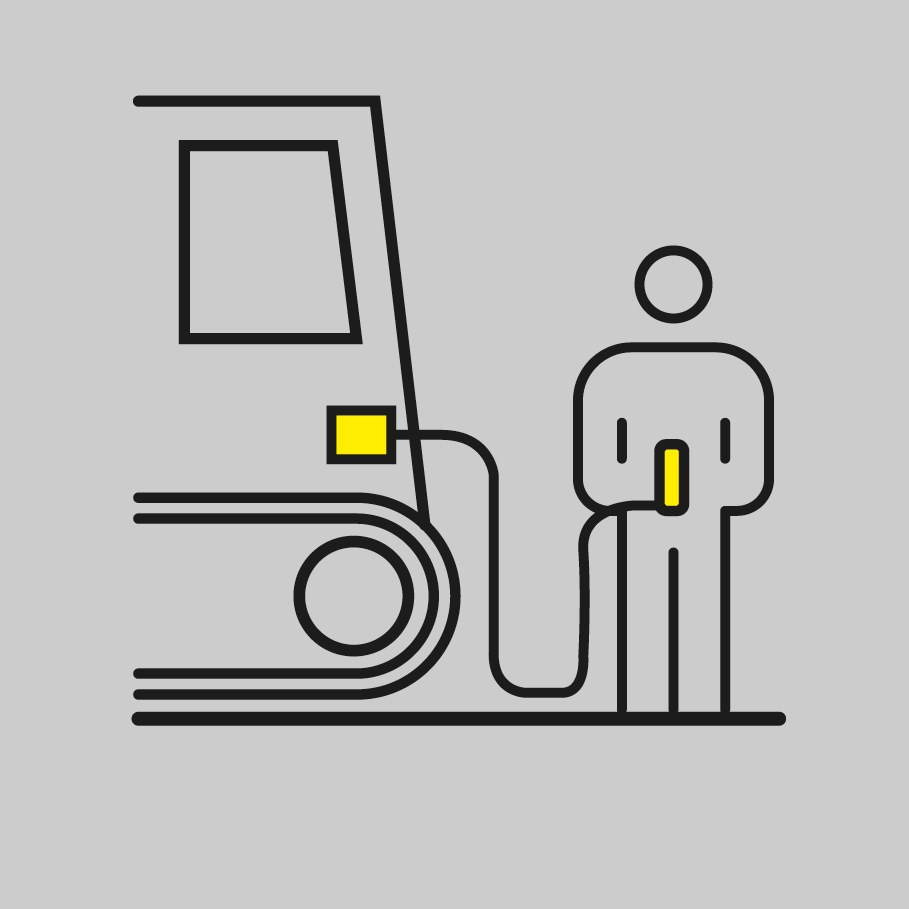

Cable Control (Tether Cable)

The cable control allows connection of the transmitting unit to the receiving unit via cable, replacing the wireless connection with a wired connection.

TECHNICAL DATA SHEET

Power supply 3.6 VDC
Frequency band 2.4 GHz FHSS
Performance level of stop (GSS / EMS) up to PL d, SIL 2 (EN ISO 13849-1)
Performance level of the automatic stop (ATS) up to PL d, SIL 2 (EN ISO 13849-1)
Typical working range 75 m (246 ft)
Average usage time with fully charged battery
(continuous use at 20°C / 68°F)		 50 hours for a typical use
Charging time 4 hours
Protection degree IP65 (NEMA 4)
Operating and storage temperature operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions

94x255x123 mm (3.70x10.04x4.84 in)
Weight

750 g (1.65 lb)
Included accessories

docking station

Contact us for customized support.
