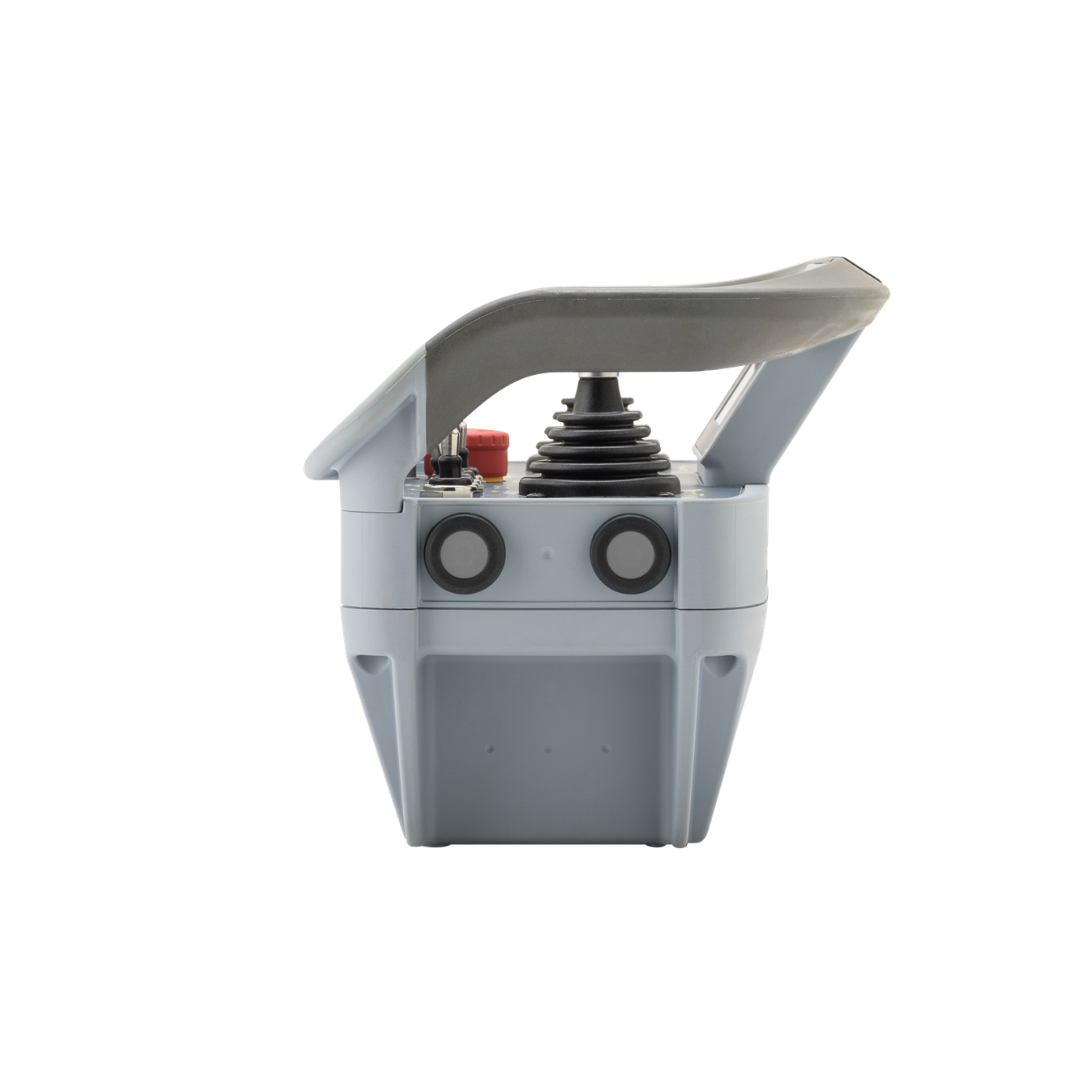

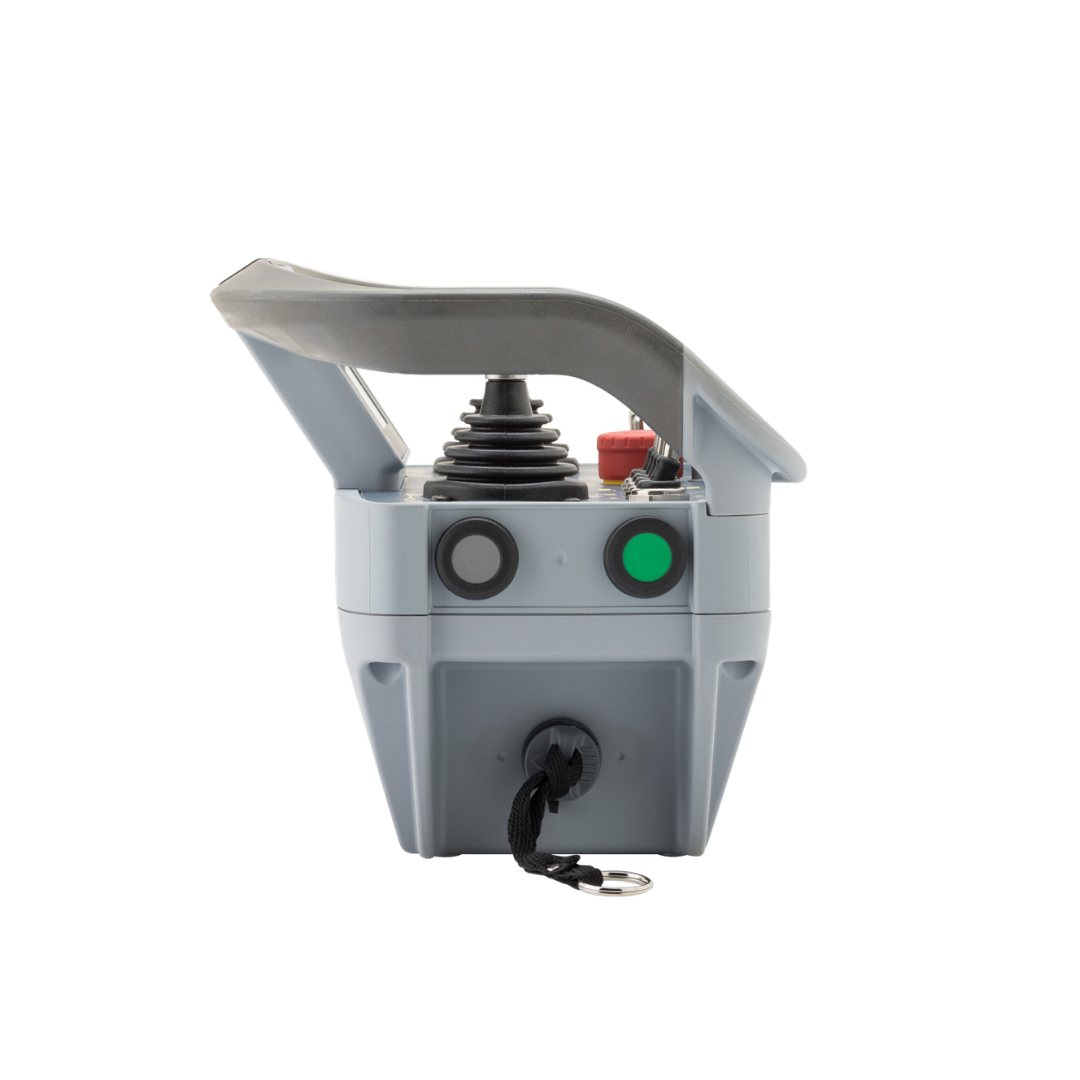

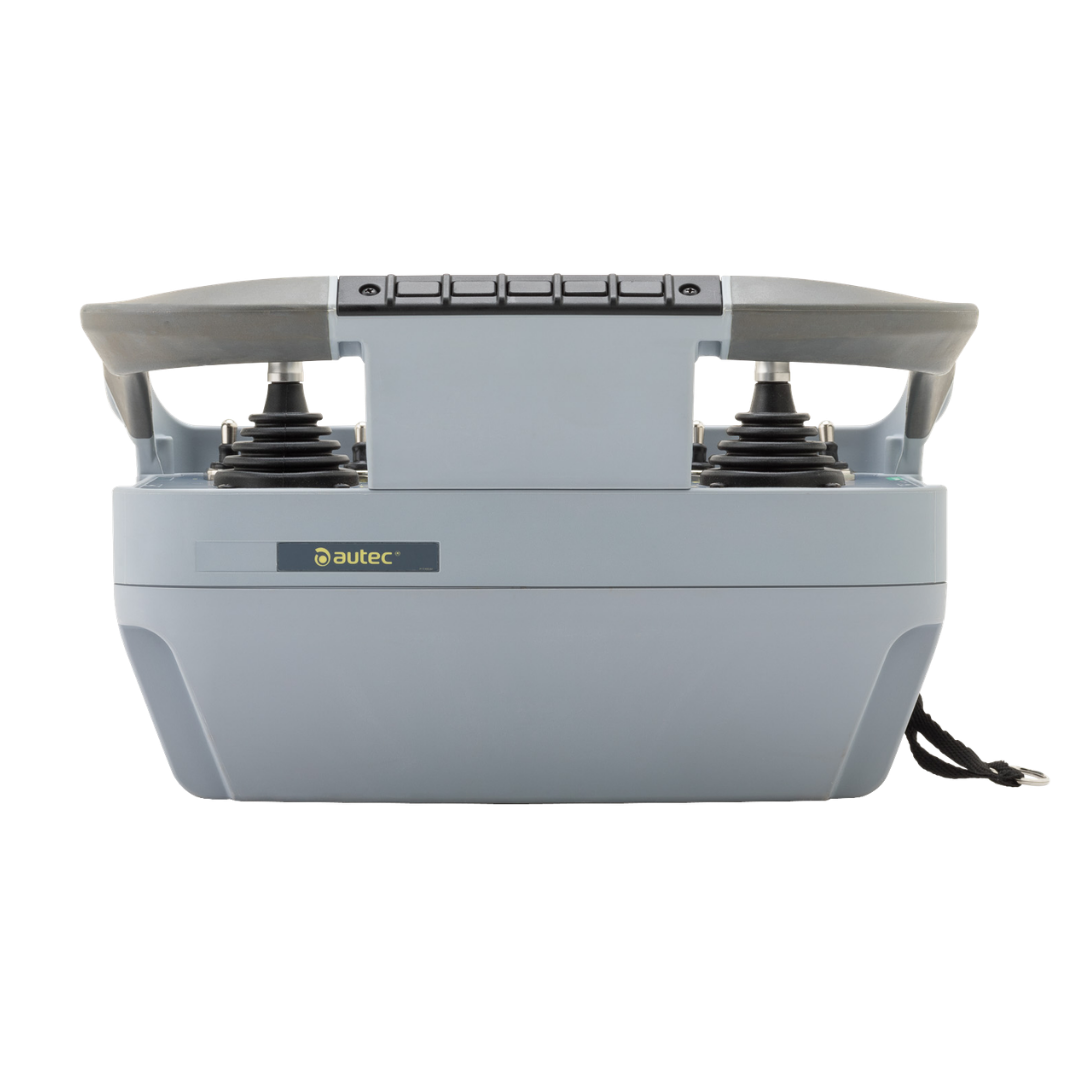

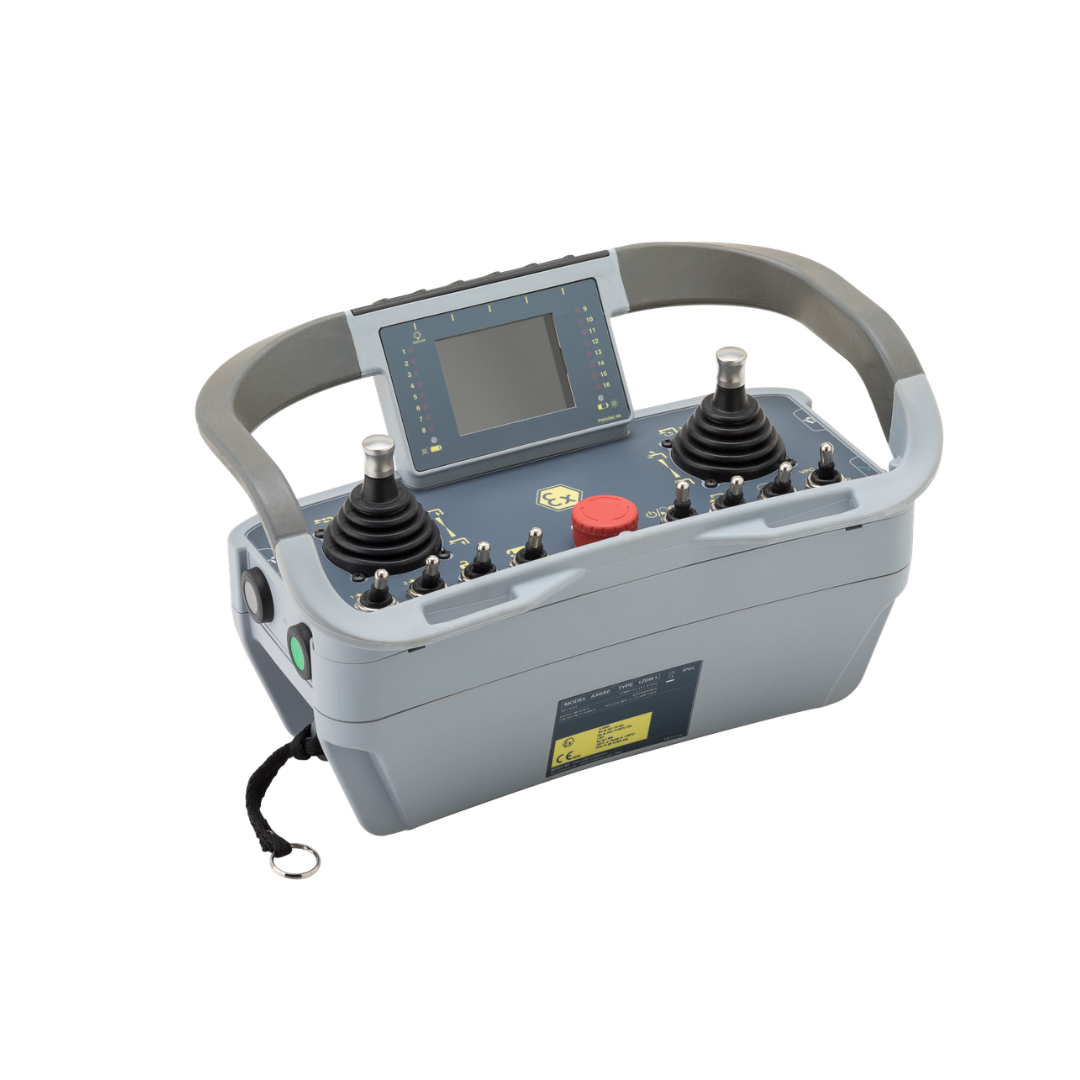

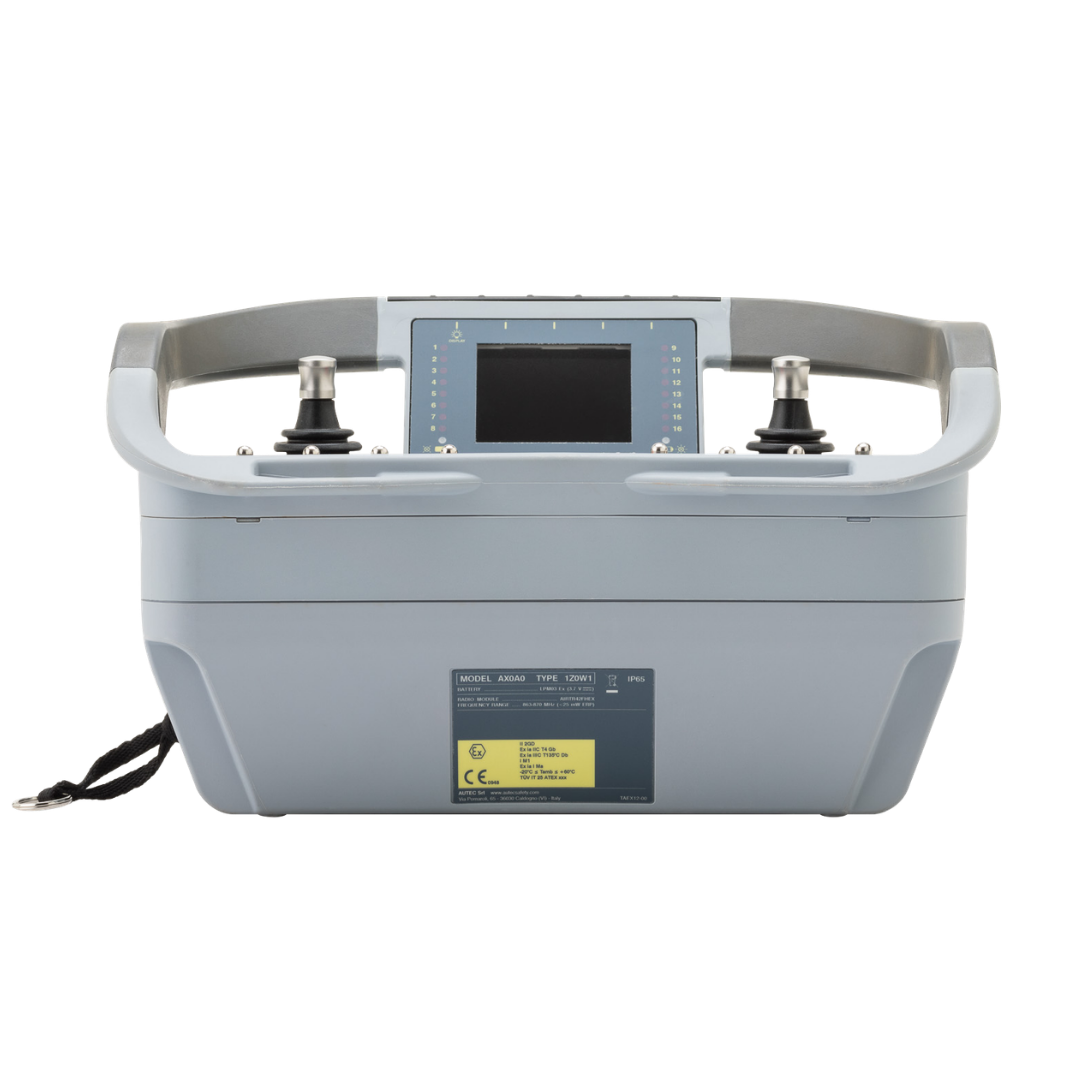

AJQ Ex

AJQ Ex is the most versatile transmitter unit in a medium-sized format of the Air Ex series. It is designed for safe and reliable control of machines operating in potentially explosive atmospheres. Developed for complex industrial applications, it combines functional safety, robustness, and ergonomics in a single solution. AJQ Ex is suitable for use in ATEX gas and dust areas classified as Zone 1, Zone 21, Zone 2, and Zone 22, as well as for mining applications in category M1, where the remote control must ensure consistent performance even under harsh environmental conditions.

TECHNICAL DATA SHEET CONTACT US

Options

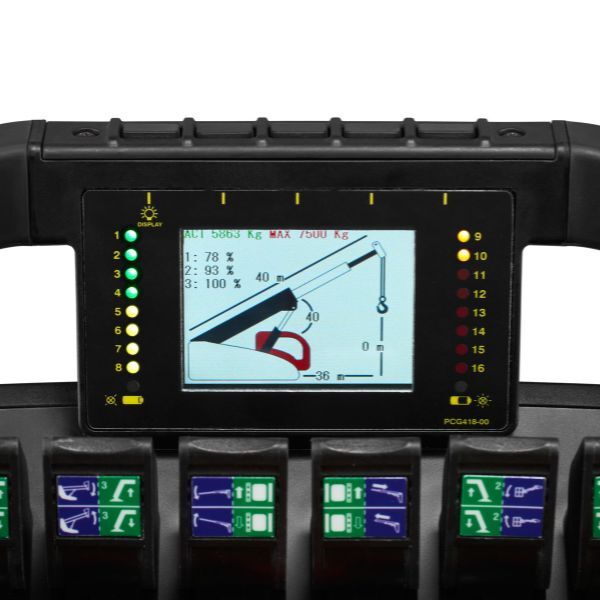

Vision system

2.8" TFT LCD display (320x240 pixels, 65536 colors)

The display is equipped with 16 LEDs and includes five buttons for interaction. An optional encoder is also available to facilitate navigation. Suitable for both indoor and outdoor environments.

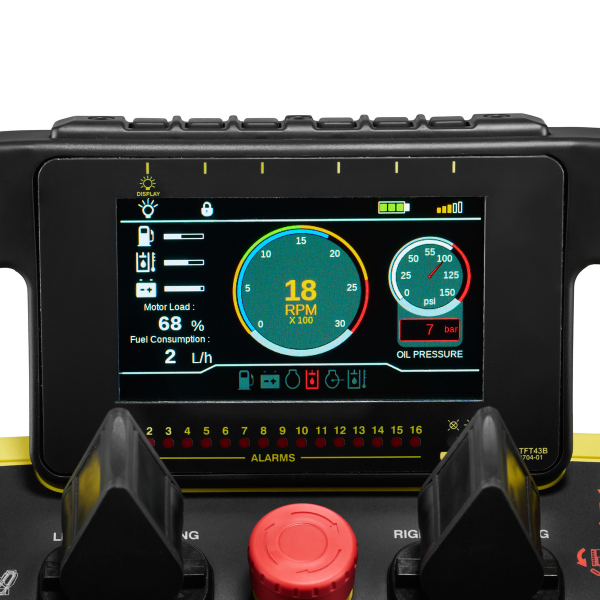

Vision system

4.3" TFT LCD display (480x270 pixels, 65536 colors)

The display features extreme brightness and readability even in particularly sunny conditions. It is programmable via CODESYS or Jmobile. It has 16 signaling LEDs and five or six buttons (depending on the model) for interaction. In addition, an optional encoder is available to facilitate navigation.

Protection system

Marine environment protection

For marine environment applications, we use corrosion proof components and the remote control is treated with an corrossion proof solvent, ensuring lasting protection against corrosion and damage caused by salt and humidity.

Power supply	3.7 VDC
Radio frequency	870/915 MHz FHSS
Performance level of stop (GSS / EMS)	up to PL d, SIL 2 (EN ISO 13849-1)
Performance level of the automatic stop (ATS)	up to PL d, SIL 2 (EN ISO 13849-1)
Typical working range	100 m (330 ft)
Max number of functions	up to 3 multi-axis joysticks, 8 actuators and 4 side buttons; up to 6 single-axis joysticks, 10 actuators and 4 side buttons
Average usage time with fully charged battery (continuous use at 20°C / 68°F)	without display: 20 hours with display: 8 hours
Protection degree	IP65 (NEMA 4)
Operating and storage temperature	operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions	310×159×173 mm (12.2×6.3×6.8 in)
Weight	~2,8 kg (~ 6.2 lb)
Included accessories	shoulder or waist belt, battery charger, 2 extractable Li-Ion batteries
